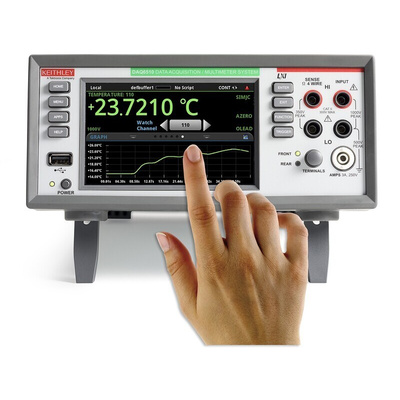

The DAQ6510 is a precision data acquisition and logging system that creates a new level of simplicity compared with he often complicated configuration and control found in many stand alone solutions. A large 5-inch (12.7 cm) multi-touch display will guide users through set-up, data visualization, and analysis, removing the necessity of a PC and custom software for many applications. If you prefer or require a PC, a complement of IVI and Labview drivers and the Keithley KickStart Instrument Control Software are available to help with any application. Using Keithley’s newest 6-digit multimeter technology, you will find even greater accuracy, functionality, and speed. Two-year accuracy specifications are included, so you can be assured your critical measurements remain accurate and fully traceable. With 12 plug-in switching and control modules available and two module slots, you can build a test system that can measure or control up to 80 devices-under-test (DUTs) in a multiplexing configuration. With two 6´8 matrix modules, a octal of 96 crosspoints, the DAQ6510 can test one or multiple Cs. For high volume production testing, select a solid state multiplexer module to maximize throughput with 800 channels/s scanning speed and minimize downtime compare with fixed life, electro-mechanical relays. A number of module have cold junction compensation, temperature references or thermocouple temperature monitoring of devices during environmental testing, and HALT and HASS accelerated life esting. Even switch signals from wireless devices with RF modules having a maximum switching frequency of 3.5 Ghz.
Large, 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display
2-year specified, full featured, traceable 6-digit multimeter with 0.0025% DCV (1 V, 10 V ranges) basic accuracy
Standard LAN/LXI and USB-TMC communication interfaces
Optional interfaces include GPIB, RS-232, and TSP-Link® Technology
12 different switch, RF, and control modules to connect to as many as 80 DUTs in one test setup
Up to 80 2-pole channels of thermocouple, RTD, or thermistor temperature measurements
Scanning speeds as high as 800 channels/second with the solid state relay module
Front panel jacks for stand-alone DMM operation
KickStart coding-free instrument control software with a data acquisition and logging application
Three-year warranty

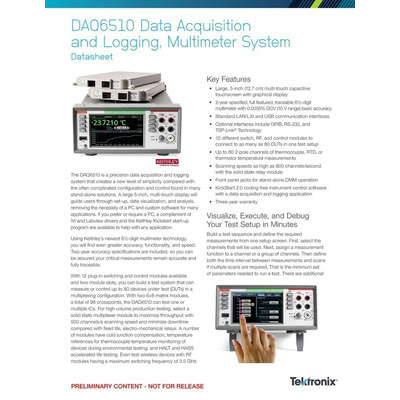

Datasheet
