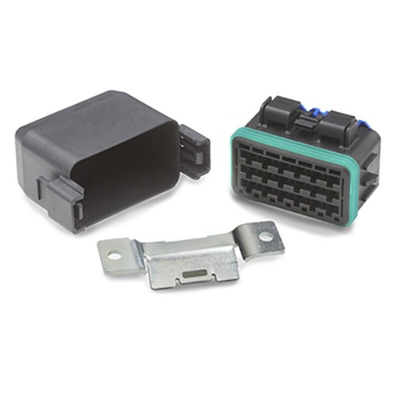

PDM31001ZXM, Wickmann 30A Base Mount Fuse Holder

The Littlefuse Wickmann, HWB18 Series compact hard-wired Box features 18 cavities that accept 2. 8mm fuse and relay components and is the perfect fit for accessory circuits and overflow circuits from your main power distribution module. It can hold plug-in components including MINI fuses, MINI format circuit breakers, 4-pin single throw relays and 5-pin double throw relays.

Cover latches keep the cover sealed and securely in place
Accepts any mini (280 style) circuit protection component
Ideal for accessory circuits, overflow circuits from main or as a main module on smaller vehicles
Durable construction
IP67/ IP69K protection rating, thus can be installed virtually anywhere on the vehicle and stands up to road splash and salt spray
Compact size
Wires plug into the back of the unit using industry standard Delphi Metri-Pack Series 280 tanged terminals
Available with or without steel mounting bracket
Tethers available to prevent loss of cover during service
Operating temperature ranges between -40 °C to +105 °C
