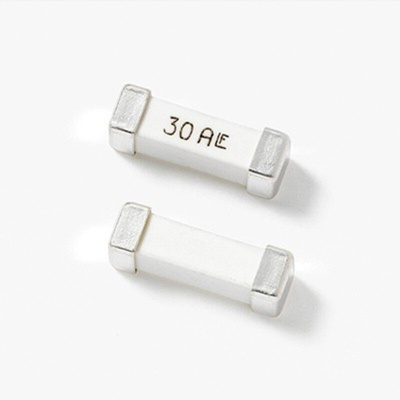

0463015.ER, WickmannSMD Non Resettable Fuse 15A, 250V, Предохранитель

The Littlefuse Wickman 463 Series, Nano2® is a fast-acting, very high current subminiature surface mount fuse designed for high operating current applications having interrupting ratings of 100A @ 250V AC & 300A @ 65V AC. It offers superior thermal cycling endurance of 500 cycles with its low temperature rise and excellent temperature stability characteristics. It is ideal to be used in datacom and telecom equipment such as high end servers, base stations, power supplies, and blade computing applications.

Surface mount fuse in a small footprint
High current rating 15A-30A
Higher voltage rating up to 100VDC and 250VAC
High melting i2t
Enhanced thermal cycling endurance
Operating temperature range from -55°C to 125°C
RoHS Compliant and Halogen-Free
Recognized to UL/CSA/NMX 248-1 and UL/CSA/NMX 248-14
Conforms to EN/IEC 60127-1 and EN/IEC 60127-7

Datasheet
