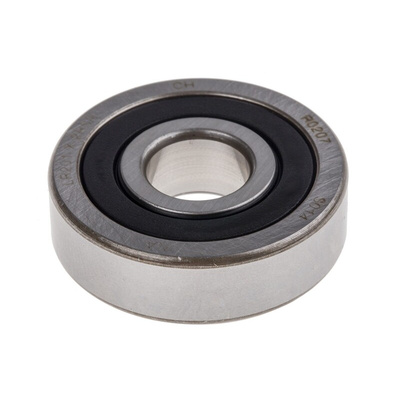

INA Yoke Cam Follower LR201-X-2RSR, 12mm ID, 35mm OD, Опорный ролик

Yoke Track Roller

The Yoke track roller has a single row ball bearing. Along with high radial forces, this bearing also supports axial force in both the directions. The outer ring has cylindrical surface and is used when they are inclined to mating track and edge stresses are avoided. The ball bearing track roller is available with an inner ring with a stud and plastic tyre on the outer ring.

Features and Benefits

• Anti-corrosion protection
• Lubrication
• Radial dynamic load capacity is 6000N
• Radial static load capacity is 2750N
• Roller diameter is 35mm
• Roller width is 10mm

Applications

• Bed ways
• Cam gears
• Conveying equipment

Datasheet
