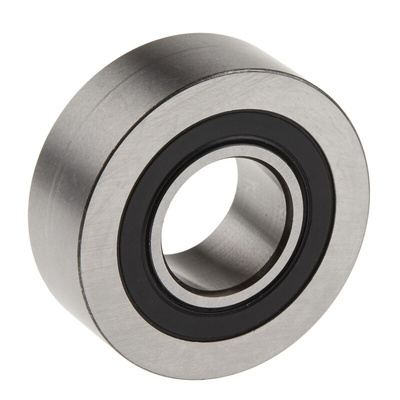

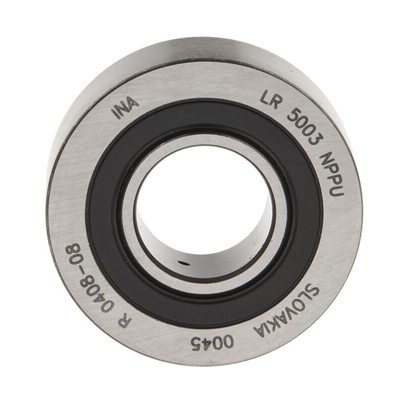

INA Yoke Cam Follower LR5003-2RS, 17mm ID, 40mm OD, Опорный ролик

Yoke Track Roller

The Yoke track roller has a single row ball bearing. Along with high radial forces, this bearing also supports axial force in both the directions. The outer ring has cylindrical surface and is used when they are inclined to mating track and edge stresses are avoided. The ball bearing track roller is available with an inner ring with a stud and plastic tyre on the outer ring.

Features and Benefits

• Anti-corrosion protection
• Lubrication
• Maximum radial load
• Radial dynamic load capacity is 7800N
• Radial static load capacity is 5200N
• Roller diameter is 40mm
• Roller width is 14mm

Applications

• Bed ways
• Cam gears
• Conveying equipment
