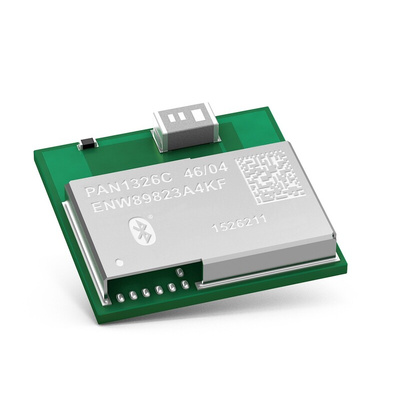

Panasonic ENW89823A4KF Bluetooth Chip 4.2, Модуль

Panasonic’s new PAN1326C is a Host Controlled Interface (HCI) Bluetooth RF module that brings Texas Instrument’s seventh generation Bluetooth core integrated circuit, the CC2564C, to an easy-to- use module format. The PAN1326C is Bluetooth-4.2 compliant and it offers best-in-class RF performance with about twice the range of other Bluetooth Low Energy solutions. Panasonic’s tiny footprint technology has produced a module of only 85.5 mm². The module is designed to accommodate PCBs pad pitch of 1.3 mm and as few as two layers for easy implementation and manufacturing.

Bluetooth-4.2-compliant up to the HCI layer
Best-in-class Bluetooth RF performance (Tx, Rx
sensitivity, blocking)
Dimensions: 9.0 mm x 9.5 mm x 1.8 mm
Based upon TI’s CC2564C
Interfaces: UART, GPIO, PCM
Bluetooth 4.2
Receiver sensitivity -93 dBm
