MSDXLM450, Amphenol Industrial EV Service Disconnect, Разъем

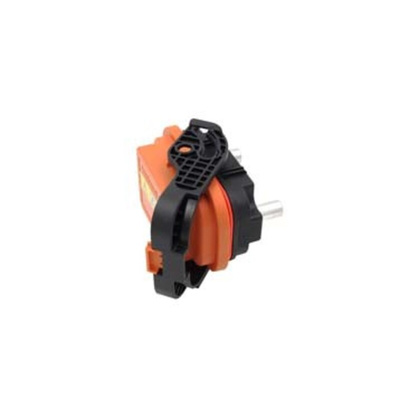

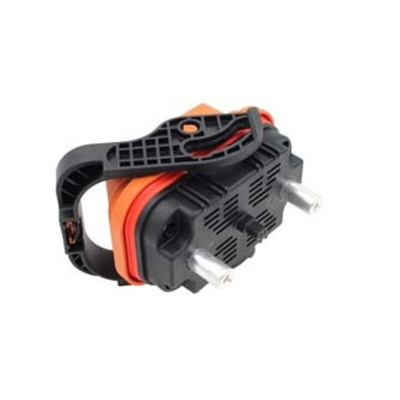

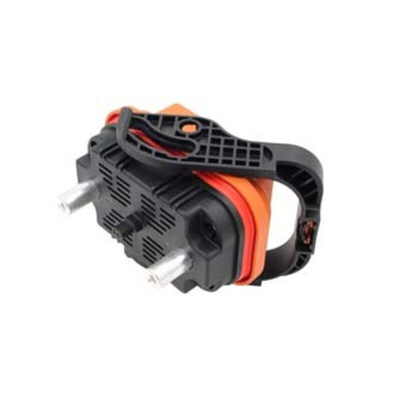

Excel Mate MSD XL with 450A Fuse

The MSD XL is part of the Excel Mate MSD series and is a safe and a reliable solution for HEV (Hybrid Electric Vehicles) servicing. Equipped with a two-stage lever to open the HVIL (High Voltage Interlock Loop) circuit prior to the separation of high voltage contacts.

All high voltage conductive contact surfaces on the receptacle assembly are finger-touch safe.

Features and Benefits:

• 1 x integrated internal HVIL
• Unique cooling structure
• High current contacts with Amphenol Radsok technology
• No tools required to unmate
• Various fuse ratings
• Receptacle can be front or rear mounted
• Housing material PA66+GF
• Flammability rating UL-94V0
• IP67 rating

Typical Applications

The MSDXLM450 manual service disconnects plug is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit. These tools are essential for service technicians and emergency response teams as they provide protection when dealing with high voltage electric vehicles.

FAQs
What is IP67 Rating?
An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.
