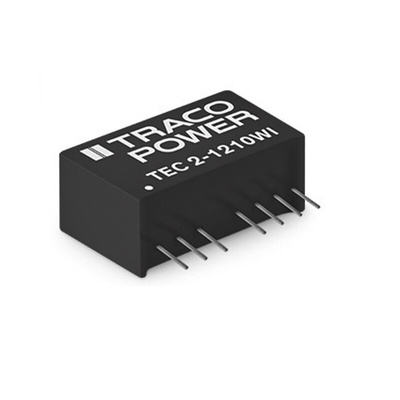

TEC 2-4812WI, TRACOPOWER TEC 2WI DC-DC Converter, 12V dc/ 167mA Output, 18 → 75 V dc Input, 2W, Through Hole, +93°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1.6kV DC Isolation Voltage, 82% Efficiency - TEC 2WI Series - TEC 2-4812WI

Level out the power feed to your circuit using this DC-DC converter from Traco Power. It accepts an input voltage range between 18 and 75V DC, then steps it down to a standard output of 12V DC. The unit delivers an isolation voltage of 1.6kV DC between the input and output sides to help prevent electrical hazards. With an efficiency rating of 82%, it lets out minimal energy as heat waste, so it runs cool and saves you the hassle of mounting a heat sink on your board.

Features & Benefits

• Continuous short-circuit protection to withstand faulty currents
• Remote On/Off function for operation from a distance
• Low output ripple and noise of 75mVp-p for minimal signal disruptions
• Plastic case delivers insulation protection to prevent electric shocks

Applications

• Audio-visual equipment
• Medical technology
• HVAC systems
• Rail transportation

How do I mount this converter?

The unit is designed to be PCB-mounted. You can achieve a firm fix by simply punching the pins through your board and soldering them in place.

What size is the device?

This converter has compact external dimensions of 9.1 (L) x 21.8 (W) x 11.2mm (D) to make sure it fit neatly into small spaces.
