RS PRO, 1Ω 300W Wire Wound Chassis Mount Resistor ±5%, Резистор

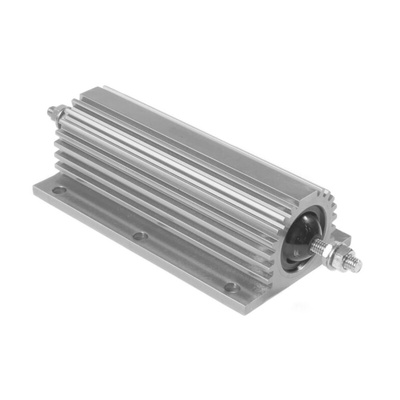

RS PRO Aluminium Housed Axial Wire Wound High Power Resistor, 1 Ω ±5% 300 W

Need to bring resistance to a high-power circuit? This RS PRO resistor is designed to limit the flow of energy in your electrical systems. It adds up to 1 Ω of resistance to your circuit and is commonly used in situations where power dissipation is crucial.
The aluminium casing holds a resistor that's wire-wound to ensure it remains compact and can fit in small spaces. It's easy to panel mount this component onto any flat surface using the pre-drilled screw holes.
This resistor conforms to the 18546 United States Military Standard (MIL) for wire-wound resistor safety. The component is often used in large electrical and production machinery, motor start-stop cycles and equipment discharge.

Features and Benefits

• Dimensions of 184.4 (L) x 72.5 (W) x 41.8 (H) mm
• Maximum operating temperature of +200ºC
• Temperature coefficient range of -100 ppm/ºC to +100 ppm/ºC
• Aluminium housing
• Power rating of 300 W
• Resistance of 1 Ω
• Wire-wound technology
• Axial termination style
• Tolerance of ±5%

RS PRO Datasheet
