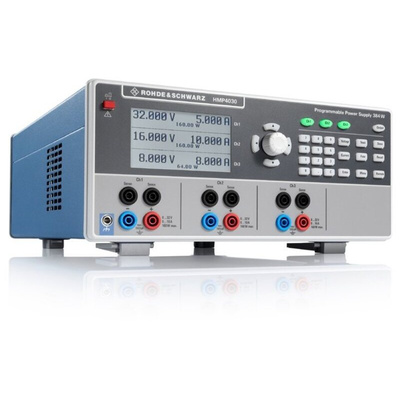

HMP4030, Rohde & Schwarz HMP Series Digital Bench Power Supply, 0 → 32V, 10A, 3-Output, 384W, Блок питания

Rohde & Schwarz Hameg Bench Power Supply / Interface options to be purchased separately

The Rohde & Schwarz HMP series Hameg 384W bench power supply has three-channels, an output voltage rating of 32V and a current rating of 10A. These rugged instruments are ideal for a wide variety of requirements from educational and industrial applications.They offer high-efficiency with low residual ripple and many protection functions.

Interface options
Dual interface (USB/LAN) R&S®HO732 - RS stock no. 174-2961
Dual interface (RS-232/USB) R&S®HO720 - RS stock no. 250-2778
IEEE-488 (GPIB) interface R&S®HO740 - RS stock no. 250-2779

Features and Benefits

• High-resolution for settings and read back and up to 1mV and 0.1A,0.2A or 1.0A
• Adjustable overload and overvoltage protection in the form of an electronic fuse or as otherwise called FuseLink for each channel
• 3 channels available
• Multiple interface options in the form of RS-232, USB, Ethernet and GPIB card specially for remote control feature can be purchased
• Integrated free PC software, EasyArb for generating user defined waveforms
• Isolated yet easily combinable channels for driving balanced circuitries
• Easily programmable time-voltage and time-current feature for advanced serial and parallel operation
• Simultaneous voltage, current and power display
• Rack-mountable

Applications

• General laboratories
• Education
• Industrial applications
• Production units
• Workshops

R&S®HMP Power Supply Series Datasheet
