103030215, Seeed Studio, CAN-BUS Shield V2

Seeed Studio Can-Bus Shield

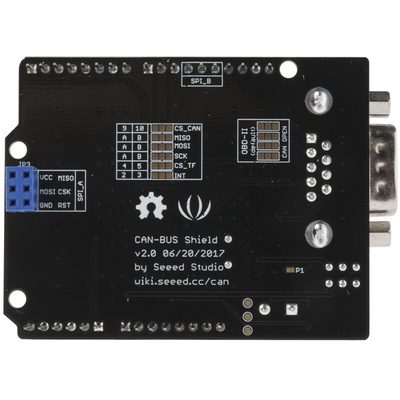

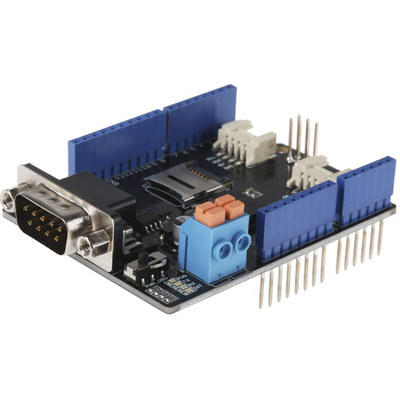

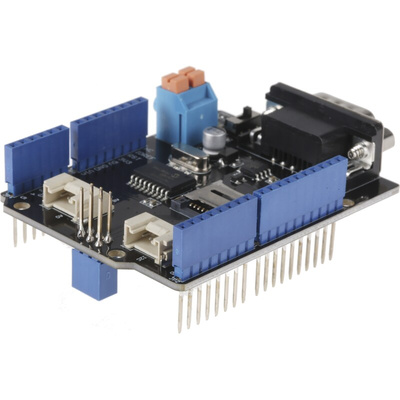

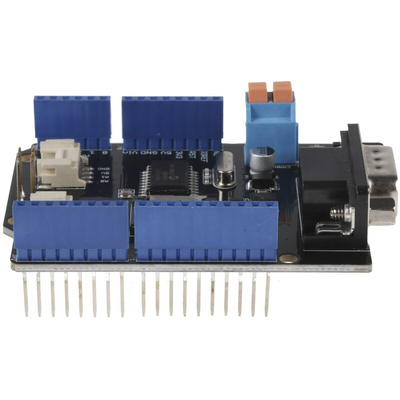

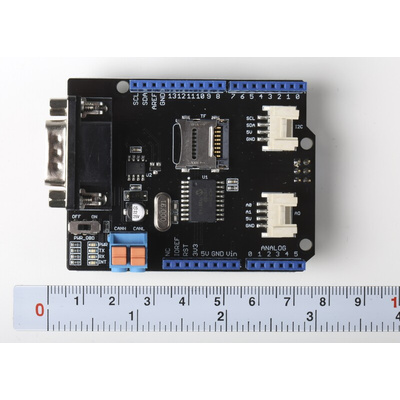

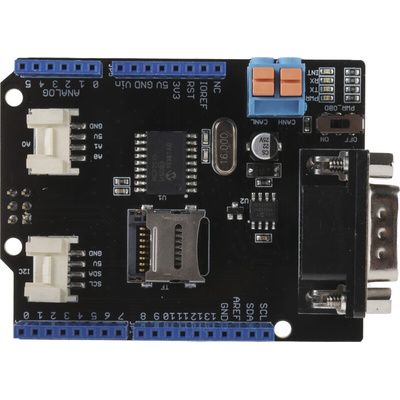

The Seeed Studio CAN-Bus Shield is a module based on the CAN MCP2515 controller and the MCP2551 transceiver. This card module can be simply plugged into an Arduino module to allow it to communicate via the CAN bus or ODB-II. This Shield has a micro-SD card reader communicating via the SPI bus. The CAN bus is an industrial bus commonly used because it allows long-distance communication without compromising on communication speed and its reliability.

Features and Benefits

Implements CAN V2.0B at up to 1Mb/s
Industrial standard 9 pin sub-D connector
OBD-II and CAN standard pinout selectable
Changeable chip select pin
Changeable CS pin for TF card slot
Changeable INT pin
Screw terminal that easily to connect CAN_H and CAN_L
Arduino Uno pin headers
2 Grove connectors (I2C and UART)
SPI Interface up to 10MHz
Standard (11bit) and extended (29bit) data and remote frames
Two receive buffers with prioritized message storage

Applications

Industrial monitoring systems
Data-logger
Embedded diagnostic tools

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

ESD Control Selection Guide V1
