Seeed Studio Relay Shield

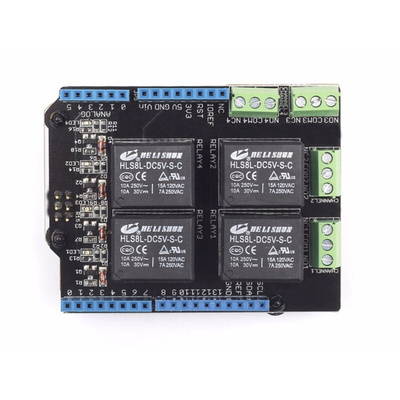

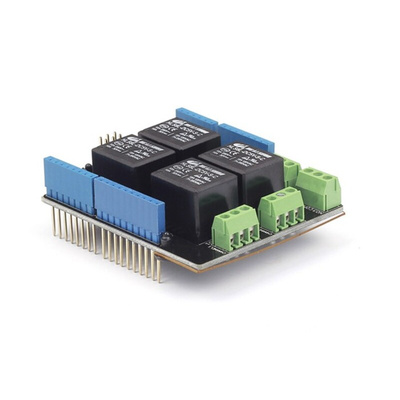

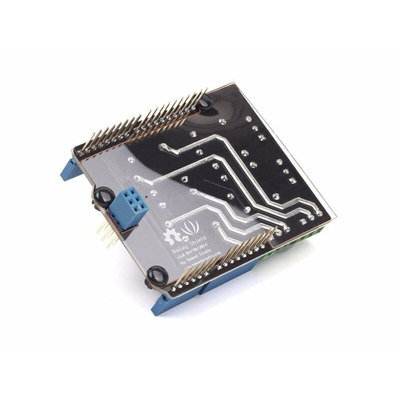

The Seeed Studio relay Shield provides four high-quality relays that can control high current loads to Arduino/Seeeduino boards. This module operates on a supply voltage range of 4.75V to 5.25V and the current range of 8mA to 250mA. It also provides NO (Normally Open)/NC (Normally Closed) connection interface. It can be a good solution for controlling devices that cannot be directly controlled by Arduino's digital I/Os. This module has a standardized Shield form factor that enables smooth connection with Arduino and compatibles. The Shield also has four LED indicators to show the ON/OFF state of each relay.

Features and Benefits

Arduino/Seeeduino Shield compatible
Relay screw terminals
Working status indicators for each relay
High-quality relays
Provides NO/NC interfaces
4 digital pins to control 4 relays
Switching voltage rating is 50VAC/30VDC
Switching current of 15A/7A
Frequency of 1Hz
Switching power of 70W
Relay life of 100,000 cycle
ESD contact discharge of ±4KV

Applications

Embedded development
Educational institutes
Robotics
Electronics laboratories
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
