Seeed Studio RF Explorer

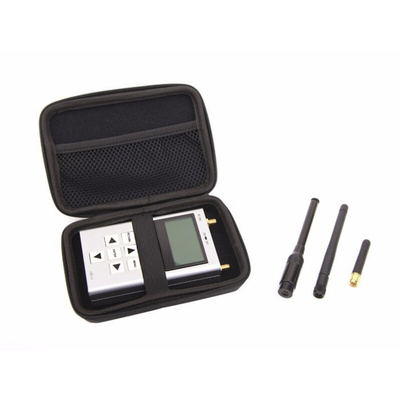

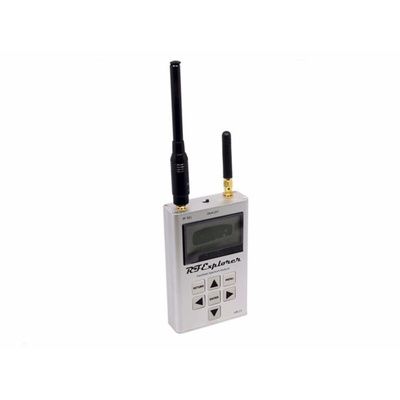

The Seeed Studio RF explorer is a 6G combo kit with a handheld digital spectrum analyser. It is an affordable tool for all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer that offers high-performance, compact size, low consumption and low-cost. Designed for indoors and outdoors, The Seeed Studio RF explorer can also be connected to a PC for extra functionality using standard mini-USB 2.0 connector. This device includes a 6G baseline unit plus an RFEMWSUB3G expansion module conveniently assembled and tested. It comes with 2 SMA connectors and 3 antennas: a nice dual-band telescopic 144/430MHz wideband telescopic antenna for all sub-GHz frequencies, a rubber duck 5.8GHz and a whip helical for 2.4GHz band. However, specific band antennas may be needed to efficiently cover some of the frequencies supported. The combination of these 2 models offers coverage for most used communication frequency range used in modern communication technologies including Wi-Fi, Bluetooth, wireless audio and video, LTE, GSM, GPRS, satellite, CATV and DTV.

Features and Benefits

Pocket size and light weight
Solid aluminium metal case
Includes a transport EVA carry case for RF explorer
Spectrum analyser mode with peak max and hold, normal, overwrite and averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity for more than 16 hours of continuous run
Rechargeable by USB
Windows PC client open-source
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz that includes frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, Wi-Fi and WiMax and Bluetooth
Firmware: RF Explorer 6G combo delivered with upgraded firmware v1.12

Applications

Wireless communication
Electromagnetic interference measurement
Electronics laboratories
Noise detectors

Certifications

CE certified
