1033483, Phoenix Contact PACT RCP Series Rogowski Coil Current Transformer, 1 A Output, 8.3mm Bore, Трансформатор тока

Phoenix Contact Current Transformer Set, 1A Output, 7.2mm Diameter - PACT RCP-4000A-1A-D140-10M - 1033483

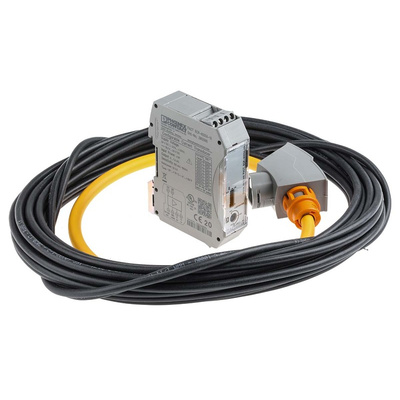

Working with a high current that you need to control or measure? This transformer set from Phoenix Contact offers you an effective and comprehensive solution. It includes a measuring transducer, as well as a Rogowski coil with a signal line for measuring high-speed alternating current (AC) pulses.

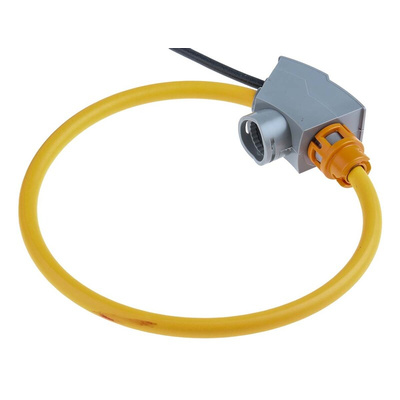

The Rogowski coil is a wound wire around a central conductor, which is connected in series. This creates an electromagnetic field that can transform a very high direct current into a lower alternating current.

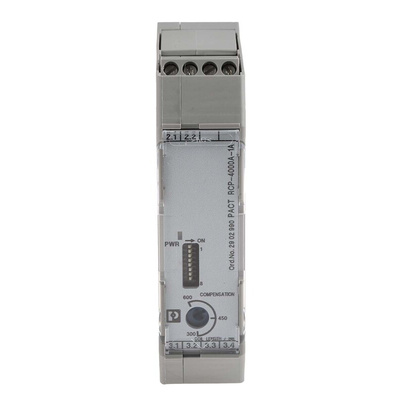

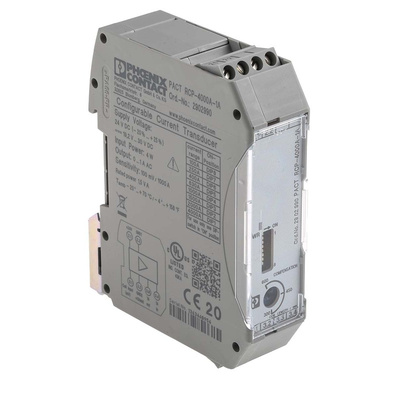

The transducer is made of high-strength polycarbonate with a durable polyamide (PA) housing, ensuring a long product life even in harsh, demanding environments. This product is particularly suited for use with very large or fast-changing currents.

• Bore size of 8.3mm
• Dimensions of 85 (height) x 22.5 (width) x 70.4mm (depth)
• Inner diameter of 8.3mm

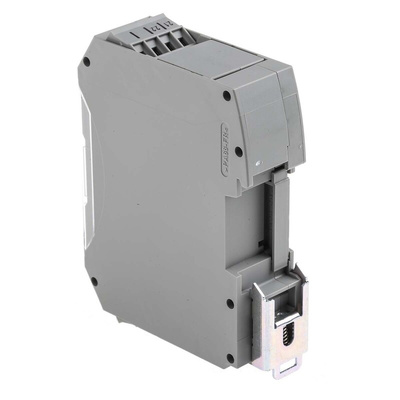

• DIN rail mounting type
• Output current of 1A
• Operating temperature range of -20°C to +80°C
• Conforms to the Restriction of Hazardous Substances (RoHS), meaning it contains no more than minimal amounts of any potentially harmful materials
