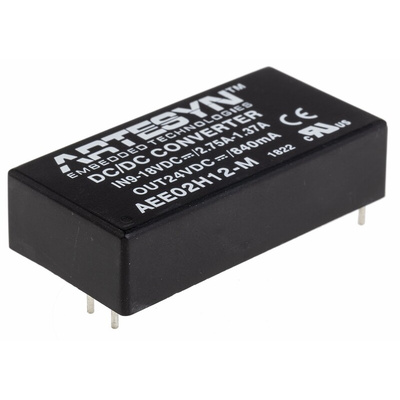

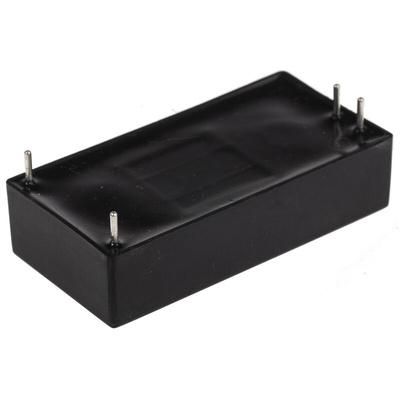

AEE02H12-M, Artesyn AEE20W-M DC-DC Converter, 24V dc/ 840mA Output, 9 → 18 V dc Input, 20W, Through Hole, +80°C Max Temp, Преобразователь

Artesyn Isolated DC-DC Converter

The Artesyn is a 20W isolated DC-DC converter belongs to the AEE15W-M series. This converter is mounted through-holes. It has an input voltage range from 9V to 18V and output voltage is 24VDC. It allows nominal voltage for medical applications with 4200VAC reinforced insulation. The DC-DC converter has a conversion range of 2:1. It has an electrical barrier between input and output to improve safety.

Features and Benefits

• Encapsulated
• Single and dual output
• Ripple noise 150mV
• Efficiency up to 89%
• Operating temperature ranges between -40°C and 85°C
• Insulation rated for 300VAC
• Low leakage current <5μA
• OCP, OVP, OTP protection
• Remote ON/OFF
• 1in x 2in DIP package
• 3-year warranty

Applications

• Telecommunication equipment
• Industrial equipment
• Consumer electronics

Certifications

• UL approved
• CE certified

Datasheet
