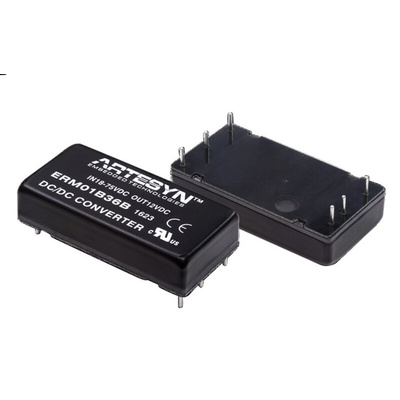

EMR01B36B, Artesyn ERM DC-DC Converter, 12V dc/ 1.67A Output, 18 → 75 V dc Input, 20W, Through Hole, +85°C Max Temp -40°C, Преобразователь

The ERM20 series of high performance 20 watt isolated DC-DC converter modules are designed specifically for railway applications. There is a choice of four single output models, offering single output voltages of 5 V, 12 V, 15 V or 24 V, and dual +/-12 and +/-15 versions.Fully encapsulated in a metal case the converters have an industry-standard 2 x 1 inch (50.9 x 25.4mm) footprint and a height of just 0.43 inch (11 mm). Reinforced insulation rated at 3000 Vac rms and high EMI immunity qualifies these converters for many demanding applications in railway and other transportation systems.
Advanced circuit topology provides up to 88% efficiency and allows the converters to accommodate ambient operating temperatures as high as 85˚C with suitable derating.

SPECIAL FEATURES
Encapsulated
Wide 4:1 input range
1” x 2” DIP package
3000 Vac rms I/O isolation
Single and dual output
OCP, OVP, OTP Protection
Remote On/Off
High efficiency - 88%
