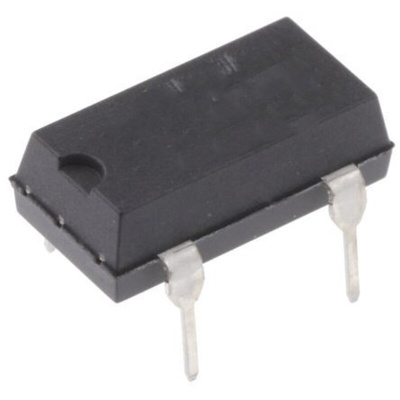

Toshiba, TLP241A(F(O DC Input MOSFET Output Optocoupler, Through Hole, 4-Pin DIP

Toshiba Photocoupler

The Toshiba TLP241A and TLP241AF series photocoupler is a new age device that consists of a photo MOSFET optically coupled to an infrared light-emitting diode. It is housed in a 4 pin DIP package. Photocoupler provides an isolation voltage of 5000Vrms, making them suitable for applications that require reinforced insulation.

Features and Benefits

• Halogen free For details
• Maximum forward voltage is 1.4V
• Maximum input current is 30mA
• Normally opened
• OFF state minimum output terminal voltage is 40V
• ON state current is 2.0A
• Trigger LED current is 3mA maximum

Applications

• Amusement equipment
• Electricity meters
• Factory automation (FA)
• Measuring instruments
• Mechanical relay replacements
• Security systems
• Smart meters

Certifications

• CQC approved
• cUL approved
• EN 60747-5-5 approved
• UL approved
