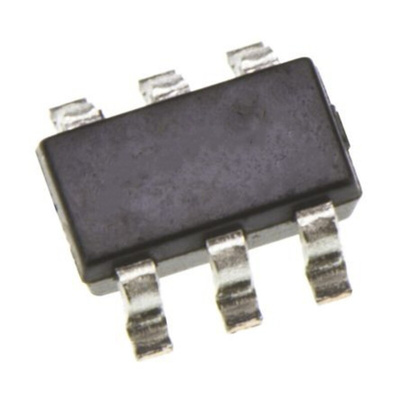

Toshiba, TLP2367(E(O DC Input Photo IC Output Optocoupler, Surface Mount, 6-Pin SO

Toshiba Photocoupler

The Toshiba TLP2367 series, SO6 package, 50Mpbs high-speed photocoupler is a new age device that consists of a high output GaA-As light-emitting diode coupled with integrated high gain, high-speed photodetector and has high speed switching performance at supply voltage from 2.7 V to 5.5 V. The detector has a totem-pole output stage with current sourcing and sinking capabilities. The TLP2367 has an internal Faraday shield that provides a guaranteed common mode transient immunity of ±25 kV/μs.

Features and Benefits

• Data transfer rate is 50MBd
• Maximum forward voltage is 2.1V
• Maximum input current is 15mA
• Propagation delay time is 20ns
• Pulse width distortion is 8ns
• Temperature ranges between -40°C and 125°C

Applications

• Factory networking
• High speed digital interfacing for instrumentation and control devices
• I/O Interface boards

Certifications

• CQC approved
• CSA approved
• UL approved
• VDE approved
