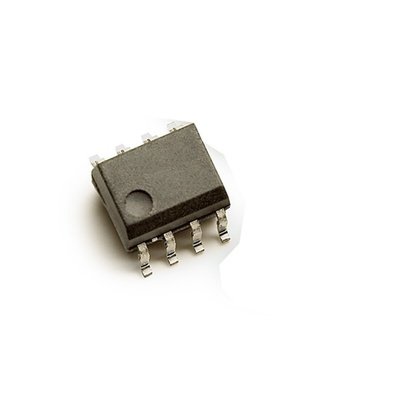

Broadcom, HCPL-0731-500E AC Input Photodarlington Output Dual Optocoupler, Surface Mount, 8-Pin SO

The Broadcom dual channel optocoupler contains a separated pair of GaAsP light emitting diodes optically coupled to a pair of integrated high gain photo detectors. It provides extremely high current transfer ratio and excellent input-output common mode transient immunity. A separate pin for the photodiodes and first gain stages (VCC) permits lower output saturation voltage and higher speed operation possible with conventional photo Darlington type optocouplers. In addition, VCC may be as low as 1.6 V without adversely affecting the parametric performance.

High Current Transfer Ratio - 1800% Typical
Low Input Current Requirements - 0.5 mA
Low Output Saturation Voltage - 0.1 V
High Density Packaging
Performance Guaranteed over Temperature 0 degrees C to 70 degrees C
LSTTL Compatible
High Output Current - 60 mA
