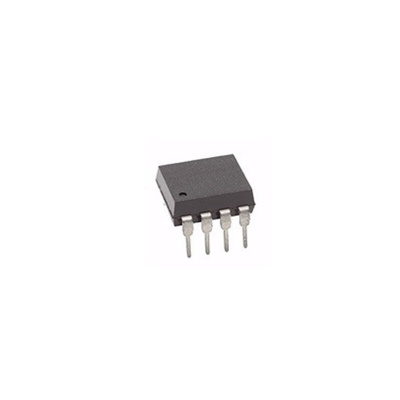

Broadcom, HCNR201-500E DC Input Photodiode Output Optocoupler, Surface Mount, 8-Pin DIP

Broadcom Optocoupler

The Broadcom optocoupler is an HCNR201 high linearity analogue optocoupler. It consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes. The input photodiode can be used to monitor, and therefore, stabilize the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually eliminated.

Features and Benefits

• 8 pin DIP package - 0.400in spacing
• Allows flexible circuit design
• Current transfer ratio is between 0.36% and 0.72%
• Low gain temperature coefficient is 65ppm/°C
• Low nonlinearity is 0.01%
• Maximum forward voltage is 1.95V
• Maximum input current is 25mA
• Wide bandwidth is DC to >1 MHz

Applications

• Industrial process control transducer isolator
• Isolator for thermocouples 4mA to 20 mA loop isolation
• Low cost analog isolation
• Medical
• Monitor motor supply voltage
• SMPS feedback loop, SMPS feedforward
• Telecom: modem, PBX

Certifications

• CSA approved
• IEC/EN/DIN EN 60747-5-2 approved
• UL1577 recognized
