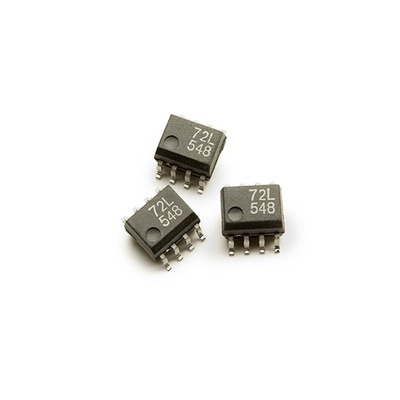

Broadcom, ACPL-072L-500E DC Input CMOS, TTL Output Optocoupler, Surface Mount, 8-Pin SO

The Broadcom ACPL-072L digital optocoupler utilizes the latest CMOS IC technology to achieve an outstanding 25MBd minimum data rate and 6ns maximum pulse width distortion. Basic building blocks of this digital optocoupler family are a CMOS LED driver IC, a high speed LED and a CMOS detector IC. A CMOS logic input signal controls the LED driver IC, which supplies current to the LED. The detector IC incorporates an integrated photodiode, a high speed trans impedance amplifier, and a voltage comparator with an output driver.

3.3V and 5V CMOS Compatibility
High Speed: DC to 25 MBd
6ns max. Pulse Width Distortion
40 ns max. Prop. Delay
20 ns max. Prop. Delay Skew
10 kV/μs min. Common Mode Rejection
-40ºC to 105ºC Temperature Range
Safety and Regulatory Approvals Pending
UL Recognised
-3750V rms for 1 min. per UL1577 for ACPL-072L
CSA Component Acceptance Notice #5
IEC/EN/DIN EN 60747-5-2 for option 060
