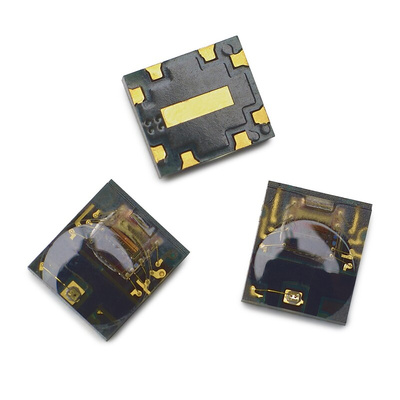

Broadcom AEDR-8502-102, Encoder 3, 8-Pin SMD

The Broadcom AEDR-850x series encoders offer two-channel quadrature digital outputs and a 3rd channel, index digital outputs. Being TTL compatible, the outputs of the AEDR-850X 3 channel optical encoder can be interfaced directly with most of the signal processing circuitries. Hence the encoder provides great design-in flexibility and easy integration into existing systems.

World smallest 3 channels reflective technology encoder.
Surface mount leadless package 3.95 mm (L) x 3.4 mm(W) x 0.9562 mm (H)
3 channels
two channel quadrature digital outputs for direction sensing and a 3rd channel, Index digital output.
Build in interpolator, factor of 1x, 2x and 4x selectable via external pinouts
TTL compatible
Single 5 V supply
-20° C to 85° C absolute operating temperature
Encoding resolution: 294 to 304 (lines/inch)
Index Gating, Gated 360º e
