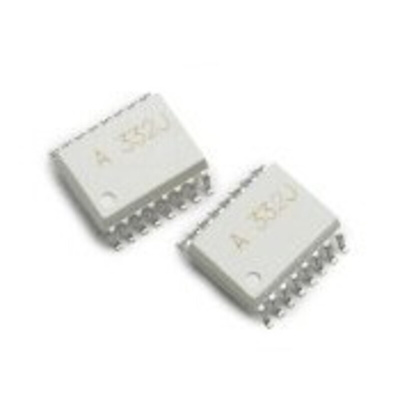

Broadcom, ACPL-332J-500E Open Collector Output Dual Optocoupler, Surface Mount, 16-Pin SO

The Broadcom ACPL-332J is an advanced 2.5 A output current, easy to-use, intelligent gate driver which makes IGBT VCE fault protection compact, affordable, and easy-to implement. Features such as integrated VCE detection, under voltage lockout (UVLO), “soft” IGBT turn-off, isolated open collector fault feedback and active Miller clamping provide maximum design flexibility and circuit protection.

Under Voltage Lock-Out Protection (UVLO) with
Hysteresis
Desaturation Detection
Miller Clamping
Open Collector Isolated fault feedback
“Soft” IGBT Turn-off
Fault Reset by next LED turn-on (low to high) after
fault mute period
Available in SO-16 package
Safety approvals: UL approved, 5000 VRMS for 1
minute, CSA approved, IEC/EN/DIN-EN 60747-5-5
approved VIORM = 1414 VPEAK
