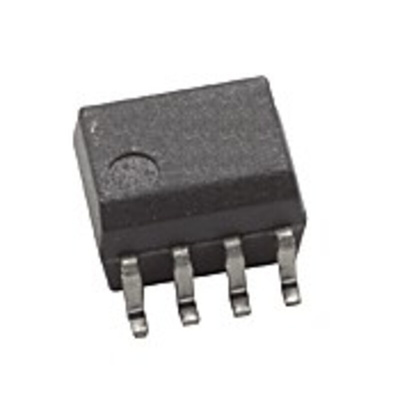

Broadcom, HCPL-0661-500E Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SO

The Broadcom HCPL-0661 optocoupler is an optically coupled logic gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10,000 V/ms.

10 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1000 V
High Speed: 10 MBd Typical
LSTTL/TTL Compatible
Low Input Current Capability: 5mA
Guaranteed ac and dc Performance over Temperature: -40 degrees C to 85 degrees C
Available in 8-Pin DIP, SOIC-8, Wide body Packages
Strobable Output (Single Channel Products only)
