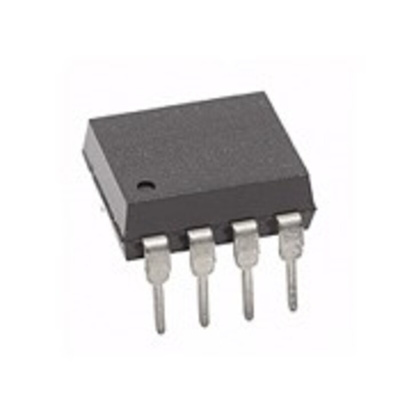

Broadcom, HCNW4502-500E Optocoupler, Surface Mount, 8-Pin DIP

Broadcom Optocoupler

The Broadcom optocoupler is an HCNW4502 series single-channel, high-speed optocoupler. It uses an insulating layer between a LED and an integrated photodetector to provide electrical insulation between input and output. Separate connections for the photodiode bias and output transistor collector increase the speed up to a hundred times that of a conventional phototransistor coupler by reducing the base-collector capacitance.

Features and Benefits

• 15 kV/μs minimum common mode transient immunity at VCM is 1500V
• Available in 8-pin DIP, 400-mil, wide body packages
• Current transfer ratio is between 15% and 24%
• high-speed is 1Mb/s
• Maximum forward voltage is 1.95V
• Maximum input current is 25mA
• Open collector output
• Temperature ranges between 0°C and 70°C
• TTL compatible

Applications

• Analog signal ground isolation
• Feedback element in switched mode power supplies
• high-speed logic ground isolation - TTL/TTL, TTL/CMOS, TTL/LSTTL
• High voltage insulation
• Line receivers
• Power transistor isolation in motor drives
• Replaces pulse

Certifications

• CSA approved
• IEC/EN/DIN EN 60747-5-5 approved
• UL approved
