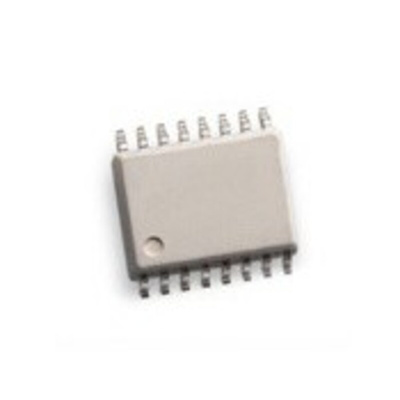

Broadcom, HCPL-316J-500E DC Input IGBT Gate Drive Output Optocoupler, Surface Mount, 16-Pin SO

Broadcom's HCPL-316J 2.5 Amp Gate Drive Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBTVCW fault protection compact, affordable, and easy-to-implement

Features
Drive IGBTs up to IC = 150 A, VCE = 1200 V
Optically Isolated, FAULT Status Feedback
SO-16 Package
CMOS/TTL Compatible
500 ns Max. Switching Speeds
"Soft" IGBT Turn-off
Integrated Fail-Safe IGBT Protection
-Desat (VCE) Detection
-Under Voltage Lock-Out Protection (UVLO) with Hysteresis
User Configurable:
Inverting, Non-inverting, Auto-Reset, Auto-Shutdown
Wide Operating VCC Range: 15 to 30 Volts
-40 degrees C to 100 degrees C Operating Temperature Range
15 kV/us Min. Common Mode Rejection (CMR) at VCM = 1500 V
Options available are:
500 = Tape and Reel Packaging Option
XXXE = Lead Free Option
Applications
Isolated IGBT/MOSFET Gate Drive
AC and Brushless DC Motor Drives
Industrial Inverters
Switch Mode Power Supplies (SMPS)
Uninterruptable Power Supplies (UPS)

Datasheet
