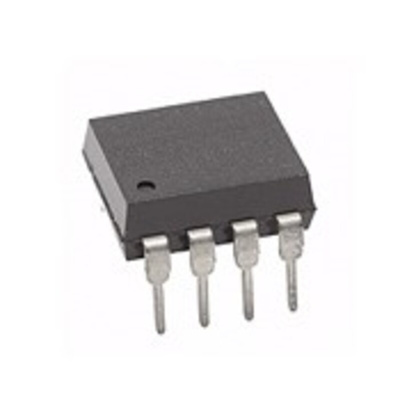

Broadcom, HCNW4506-500E Optocoupler, Through Hole, 8-Pin DIP

Broadcom Optocoupler

The Broadcom optocoupler is an HCNW4506 series intelligent power module and gate drive interface optocoupler. It consists of a high-performance AlGaAs LED that is optically coupled to an integrated high gain photodetector. The minimized propagation delay difference between devices makes this optocoupler excellent solutions for improving inverter efficiency through reduced switching dead time.

Features and Benefits

• 15kV/μs minimum common mode transient immunity at VCM = 1500 V
• Available in 8-PIN DIP, 400mil package
• Current transfer ratio is between 44% and 90%
• Maximum forward voltage is 1.85V
• Maximum input current is 50mA
• Minimized pulse width distortion PWD = 450ns
• Temperature ranges between -40°C and 100°C

Applications

• AC and brushless DC motor drives
• Industrial inverters
• IPM isolation
• Isolated IGBT/MOSFET gate drive

Certifications

• CSA approved
• IEC/EN/DIN EN 60747-5-2 approved
• UL approved

Datasheet
