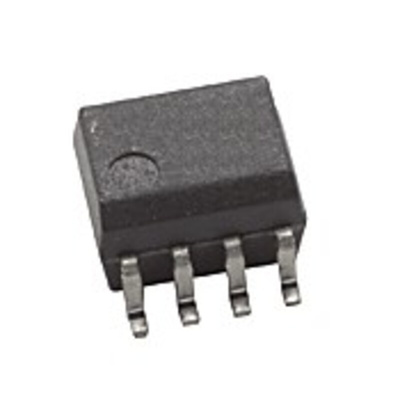

Broadcom, HCPL-0302-500E IGBT, MOSFET Output Optocoupler, Surface Mount, 8-Pin SO

The Broadcom HCPL-0302 gate drive optocouplers consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs. For IGBTs with higher ratings, the HCPL-0314/3140 (0.4 A), HCPL-3150 (0.5 A) or HCPL-3120 (0.2 A) gate drive optocouplers can be used.

0.2 A minimum peak output current
High speed response:
0.7 us maximum propagation delay over temperature range
Ultra high CMR:
minimum 10 kV/us at Vcm = 1000 V
Boots trappable supply current:
maximum 3 mA
Wide operating temperature range:
-40 degree C to 100 degree C
Wide Vcc operating range:
10 V to 30 V over temperature range
