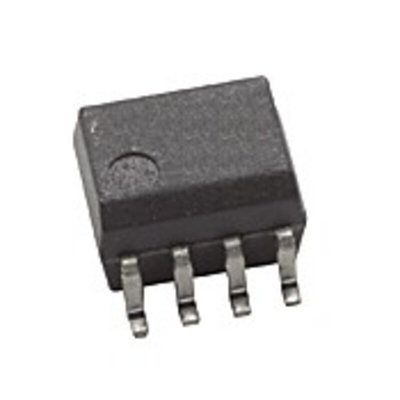

Broadcom, HCPL-0600-500E Transistor Output Optocoupler, Surface Mount, 8-Pin SO

The Broadcom HCPL-0600 optocoupler is an optically coupled logic gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational parameters are guaranteed from -40 degrees C to 85 degrees C allowing trouble-free system performance.

High Speed: 10MBd Typical
LSTTL/TTL Compatible
Low Input Current Capability:5 mA
Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
Available in 8-Pin DIP,SOIC-8, Wide body Packages
Storable Output (Single Channel Products only)

Datasheet
