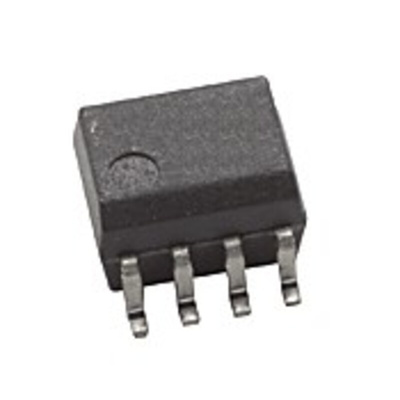

Broadcom, HCPL-0611-500E Transistor Output Optocoupler, Surface Mount, 8-Pin SO

The Broadcom HCPL-0611 is a optically coupled gate that combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10,000 V/ms. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational parameters are guaranteed from -40 degrees C to 85 degrees C allowing trouble-free system performance.

10 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1000 V
High Speed: 10MBd Typical
LSTTL/TTL Compatible
Low Input Current Capability :5 mA
Guaranteed ac and dc Performance over Temperature: -40 degrees C to 85 degrees C
Available in 8-Pin DIP, SOIC-8, Wide body Packages
Strobable Output (Single Channel Products only)
