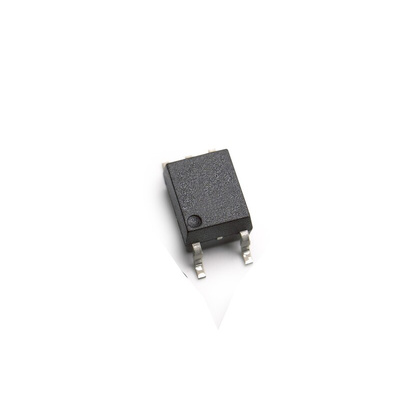

Broadcom, HCPL-M600-500E AC/DC Input Transistor Output Optocoupler, Surface Mount, 5-Pin SO

The Broadcom small outline high CMR, high speed, logic gate optocoupler is a single channel device in a five lead miniature footprint. The HCPL-M600 optically coupled gates combine a GaAsP light emitting diode and an integrated high gain photon detector. The output of the detector I.C. is an Open-collector Schottky-clamped transistor. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational parameters are guaranteed from -40oC to 85oC allowing trouble-free system performance.

Surface Mountable
Very Small, Low Profile JEDEC Registered Package Outline
Compatible with Infrared Vapour Phase Reflow and Wave Soldering Processes
High Speed: 10 MBd
LSTTL/TTL Compatible
Low Input Current Capability: 5 mA
Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
