2051, SCS Antistatic Heel Grounder

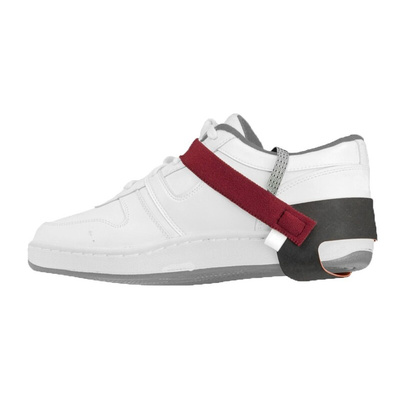

SCS Heel Grounder

The SCS heel grounder is designed to effectively ground mobile personnel when they are in contact with conductive and dissipative flooring. The conductive, no-slip outer sole provides a reliable static ground. The function of the shoe grounding assembly depends upon contact with the skin through perspiration in the shoe to sustain an electrical contact between the conductive ribbon and the body. The shoe grounder assembly 2051 comes with a 1 Mohm Resistor. Meets category ESD SP9.2 Type A.

Features and Benefits

• 24 Inch Conductive 8-Strand Nylon Polyester Grounding Tab: Additional conductive material provides reliable connection with operator's sweat-layer.
• Cup Style Heel Grounder with Two Soles: Used to ground standing or mobile operator to ESD Flooring
• One Mohm Current Limiting Resistor
• Tab to Cup Resistance: 1 x 106 to < 1 x 108ohms.
