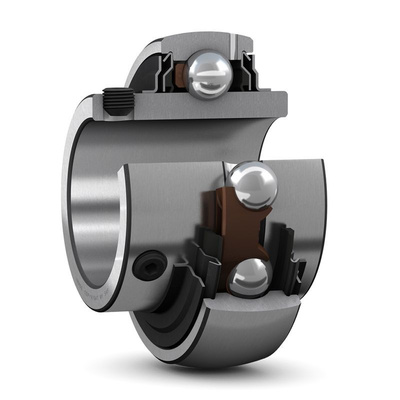

SKF Bearing Inserts 30mm ID 62mm OD YAR 206-2F

SKF Bearing Insert, 19,500N Dynamic Load Rating, 11,200N Static Load Rating - YAR 206-2F

Need a ball bearing that's suitable for heavy-duty applications? Use this bearing insert from SKF. It has deep-groove ball bearings and an extended inner ring on both sides to distribute loads over a greater surface area. This helps it to support constant and alternating directions of rotation and it also reduces noise and vibration. The cylindrical shape and wide inner ring allow for quick and easy mounting on shafts. Set screws hold it securely in place and are positioned so they're easy to access.

• Dynamic load rating of 19,500N and static load rating of 11,200N means it's suitable for constantly varying and slow-moving loads
• Seal and flinger fitted on both sides to stop contaminants from getting into the workings
• Bearings are made from steel for mechanical strength and durability

Applications

• Agricultural machinery
• Conveying and packaging systems
• Materials handling
• Automated processes

Which seating ring fits this bearing insert?

The SKF rubber seating ring (209-3944) fits this bearing insert.

What's the bore size of this bearing insert?

The cylindrical bore of this bearing insert has a diameter of 30mm for easy compatibility with standard machinery.

Datasheet

Catalogue - Y Bearings & Y Bearing Units

Datasheet - YAR 206-2F
