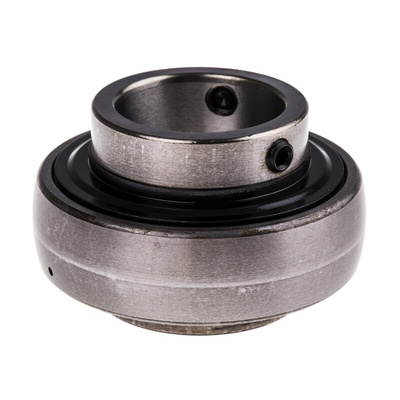

SKF Bearing Inserts 35mm ID 72mm OD YAR 207-2F

SKF Bearing Insert, 25.5kN Dynamic Load Rating, 35mm ID - YAR 207-2F

Minimise friction on the moving parts of your equipment using this bearing insert from SKF. You can easily attach the device to shafts in your machinery by fastening two screws to the extension on its inner ring. This ensures you have a tight connection that won't come loose, even in vibrating systems. It has a dynamic load rating of 25.5kN and a static load rating of 15.3kN, indicating it can support heavy weights with high-performance speed.

Features & Benefits

• Made of corrosion-resistant and dust-repellant NBR for long-lasting performance
• Inner diameter of 35mm and outer diameter of 72mm will fit smaller shafts
• Light weight of 450g puts minimal strain on your applications
• M6 screw size for simple attachment to compatible machinery

Applications

• Food processing equipment
• Conveyor systems
• Agricultural machinery

How do I lubricate this device?

You can lubricate the insert with grease at regular intervals to minimise friction and ensure the smooth running of your machinery.

What's the limiting speed of this component?

The unit has a limiting speed of 5300rpm, meaning it supports fast-paced applications.
