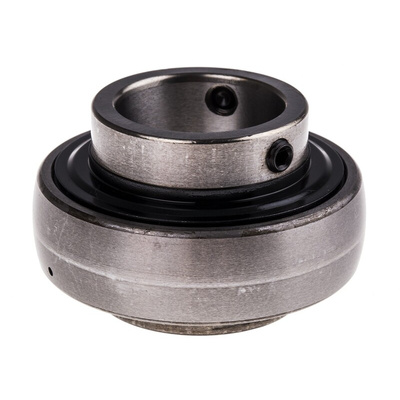

SKF Bearing Inserts 30mm ID 62mm OD YET 206

SKF Bearing Inserts, 30mm ID, 62mm OD - YET 206

Looking for an easy-to-mount bearing solution for your industrial machinery? Turn to this bearing insert from SKF. Its inner ring extends from the outer ring, so you can quickly fit it to a rotating shaft. The eccentric collar lets you easily lock the inner ring to the shaft for a secure hold that withstands vibration. As it's seal keeps out dirt particles, you can safely use this unit in applications with a high contamination risk. A limiting speed of 6,300r/min means this is a reliable option to use with equipment that operates at a consistently rapid pace.

• Dynamic load rating of 19.5kN and static load rating of 11.2kN to withstand heavy-duty loads
• Lubrication holes allow for quick and simple maintenance
• NBR seals are resistant to oils and solvents for increased durability

Applications

• Material handling
• Conveyor systems
• Aviation industry
• Industrial cylinders

Can this bearing insert withstand shaft misalignment?

Yes, it can. Thanks to the spherical shape of its outer ring, this bearing can accommodate initial static misalignment when you set it in a housing.

Datasheet

Catalogue - Rolling bearings

Datasheet - YET 206
