MIKROE-2902, MikroElektronika OOK RX click MICRF230 Wireless for Garage or Gate Doors Control, Remote Fan or Light Control, Remote

MikroElektronika Wireless Receiver

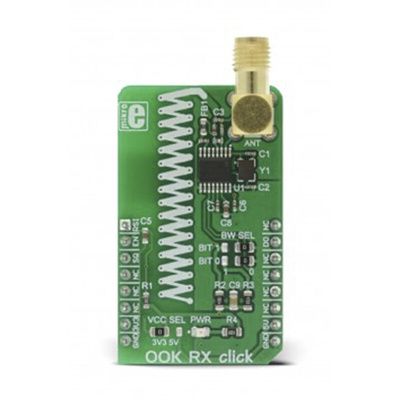

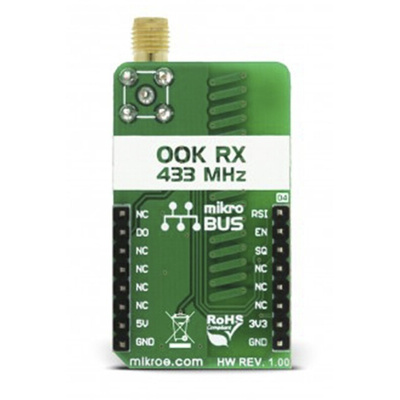

The MikroElektronika wireless receiver is an innovative device with an operating frequency of 433MHz. This device allows the realisation of a simple, low-speed wireless ad hoc communication network between a receiver and a compatible transmitter. It features an ASK/OOK demodulator, analogue RSSI output and integrated squelch capabilities. This OOK RX click can work both with an integrated PCB trace antenna or external antenna, which can be attached to the on-board SMA connector of the click board for improved range and received signal strength.

Features and Benefits:

• Interface: GPIO
• Input voltage 3.3V or 5V
• Pb free
• Receive modulation duty cycle ranges between 20% and 80%
• Widely used for remote low-speed communication

Applications:

• Garage or gate doors control
• Remote fan or light control
• Remote keyless access
• Unidirectional low data rate wireless links

Certifications:

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• FCC certified
• IC certified

Datasheet

Schematic
