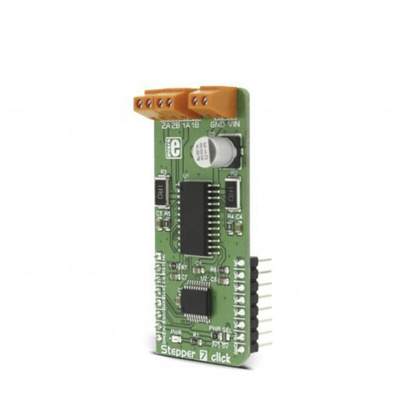

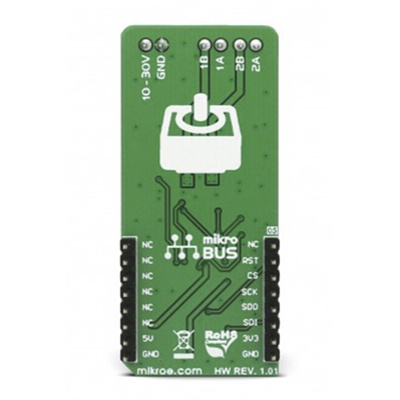

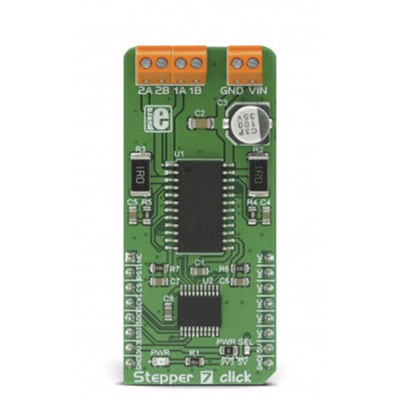

MikroElektronika 7 Click Stepper Motor Drive
The MikroElektronika stepper 7 click is a bipolar step motor driver. This stepper 7 click carries a port expander so that communication can be done with a minimal number of pins, through the mikroBUS™ SPI bus. It has an H-bridge bipolar step motor driver, which supports full and half step control modes. This click board™ is equipped with two integrated circuits. The step motor driver IC is the MTS62C19A, a dual full-bridge motor driver from Microchip.
Features and Benefits
• Input voltage is 3.3V or 5V
• Interface: GPIO and SPI
• Offers thermal protection
• Protection against current shoot-through the H-Bridge
• Provides integrated kickback voltage protection
• Reasonable high current capability
Applications
• Used for driving motor
• Used in safe step motor driver
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
