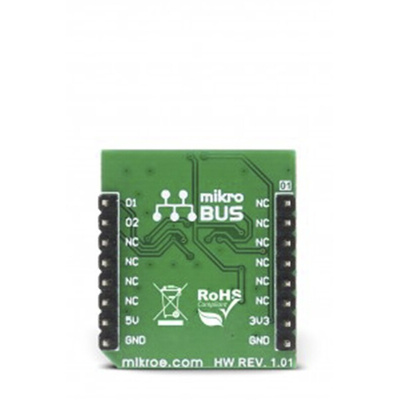

MikroElektronika Opto Encoder Click TCUT1600X01 mikroBus Click Board MIKROE-2549

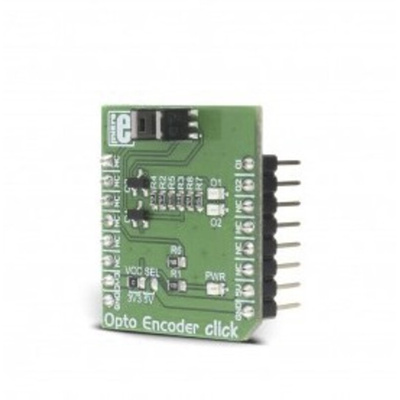

MikroElektronika Opto Encoder Click

The MikroElektronika MIKROE-2549 Opto Encoder Click is a linear incremental optical sensor/encoder click, which can be used for the movement or rotation encoding. Encoders of this type are widely used for many applications which involve precise detection of the position, speed, or rotational angle of an object. The operation is the same whether it be a rotary encoder knob controller or a rotary encoder on a motor shaft. It includes an optical sensor found on the Opto Encoder click. The optical sensor is equipped with one infrared LED with the wavelength of 950nm and two phototransistors.

Features and Benefits:

• Operating supply voltage is 3.3V and 5V
• Click board size is 28.6mmx25.4mm
• on-board modules TCUT1600X01 Tall Dome Dual Channel Transmissive Optical Sensor with Phototransistor Outputs
• The Opto Encoder click features a precise detection of the position, speed, or rotational angle of an object
• Detect the direction of the movement with two photo-sensing elements
• Input voltage: 3.3V or 5V
• Click board size is 28.6mmx25.4mm

Applications:

• Automotive optical sensors
• Accurate position sensor for encoder, sensor for motion, speed and direction
