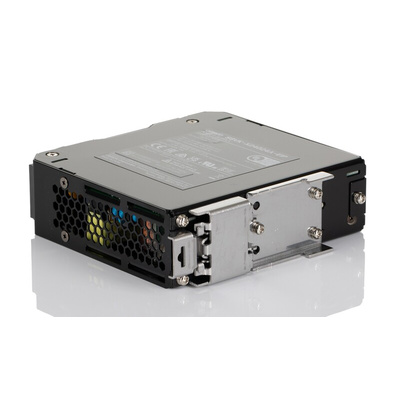

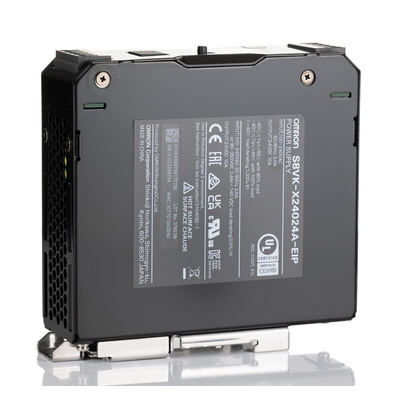

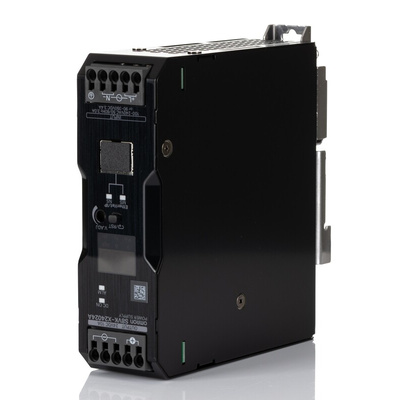

S8VK-X24024A-EIP, Omron S8VK-X Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 24V dc dc Output, 10A Output, 240W, Блок питания

OMRON DIN Rail Power Supply, Ethernet and Modbus Compatible, Push-In Connections - S8VK-X Series - S8VK-X24024A-EIP

Want a PSU with all the practicality of push-in connections? This DIN rail power supply from OMRON is just the thing. It works with power supplies across a universal AC and DC range from 85 to 264V AC or 90 to 350V DC, so it's a safe bet for running sensitive battery-supplied devices from any supply. The unit's ultra-speedy connection style makes light work of wiring up with no specialist tools – all it takes is a little insertion force. Thanks to compatibility with Ethernet IP and Modbus TCP communications protocols, you also have options for remote control and network integration.

Features & Benefits

• Snaps onto a 35mm DIN rail for easy tool-free mounting
• Indicator display keeps you up to speed on settings and operating status
• 150% power boost function helps you start high-load-drawing equipment like motors and pumps

Applications

• Industrial automation
• Security equipment
• Robotics systems

How efficient is this PSU?

An efficiency rating of 93% means this product is economical with electricity and produces little waste in the form of heat. That eliminates the need for add-ons like a fan or a heatsink as your unit can cool itself naturally.

Standards

Harmonic current emissions EN 61000-3-2, EN 61204 -3 Class B, EN 55011 Class B, UL 508, ANSI/ISA 12.12.01 CSA C22.2 No. 107.1, CSA C22.2 No. 213 (cUL), UL 60950-1, UL 62368-1 OVC II, CSA C22.2 No. 60950-1, No. 62368-1 (cUR) OVC II,EN 50178 OVC III OVC II, EN 60950-1, EN 62368-1 OVC II, Pol2, EAC, RCM (EN61000-6-4), Korea Radio Waves Act (Law No. 10564), PELV, EN/IEC 61558-2-16. SEMI F47-0706.
