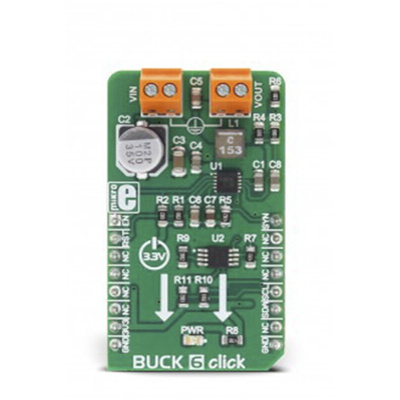

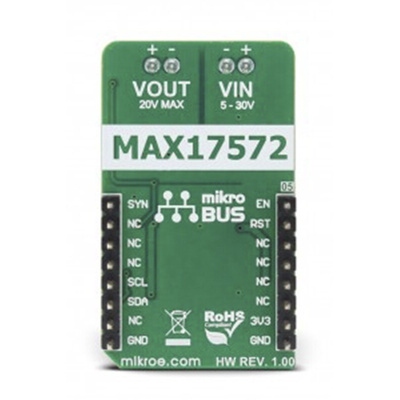

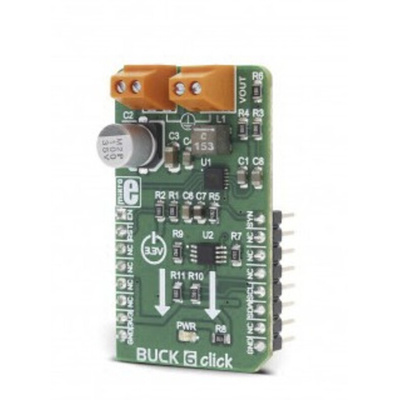

MikroElektronika Buck 6 Click Board

The MikroElektronika Buck 6 click board is an advanced synchronous DC-DC step down (buck) converter, with a very wide input voltage range from 5V to 30V and reasonably high output current up to 1A. An additional SYNC input allows tweaking of the internal clock signal, so it can be synchronized with the external clock signal when more than one device is used. The voltage output can be set via the I2C interface pins on the mikroBUS™. This allows digital interfacing of the BUCK 6 and controlling the output voltage by custom software. The output regulated voltage rating is between 0.9V and 30V.

Features and Benefits

• Adjustable PWM switching frequency
• high-efficiency
• Low external components count
• On-board DS4432U dual channel 7-bit DAC with I2C interface
• On-board MAX17572 step-down DC-DC converter
• Over temperature protection
• Overcurrent protection
• Soft start

Applications

• Distributed supply regulators
• General-purpose power supplies
• Wall transformer voltage regulators
