2904597, Phoenix Contact QUINT4-PS/1AC/24DC/1.3/SC Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 24V dc dc Output,, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

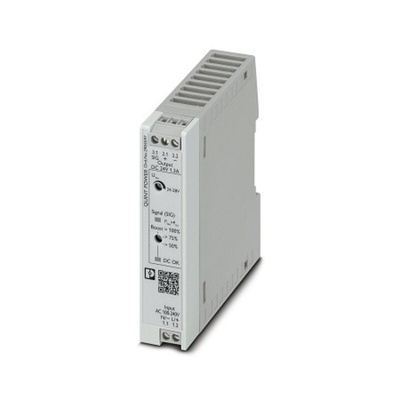

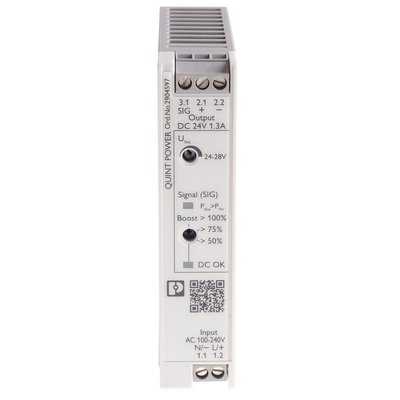

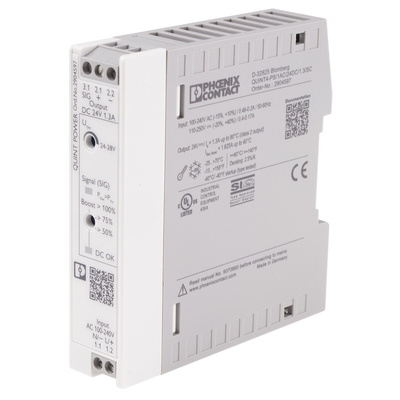

Phoenix Contact Switch Mode DIN Rail PSU, 30W Power Rating, 1.3 Output Current - QUINT4-PS/1AC/24DC/1.3/SC - 2904597

This DIN rail power supply unit from Phoenix Contact converts an incoming electrical current to the right levels for your equipment. It's designed for use in machine building, with typical applications including the automotive industry and process technology. You can rely on it to start even difficult loads, as it features a dynamic power boost that delivers 150% of the nominal current for five seconds.
A high MTBF (mean time between failures) value of over one million hours indicates that this unit will keep your system running over the long term. Preventive function monitoring indicates critical operating states before errors occur. You can easily mount the PSU on a DIN rail, and it uses a push-in connection so there’s no need for tools.

• Slimline design of 99 (H) x 22.5 (W) x 90mm (D) and light weight of 180g saves space and reduces strain in your system
• Transient surge protection safeguards your operations
• Operates in an ambient temperature range of -25°C to +70°C so it’s suitable for harsh conditions
• Power range of 30W with capabilities of 100W for versatility
• IP20 (ingress protection) rating indicates it's touch-proof and resistant to dust or objects over 12mm in size

Datasheet 2904597
