2904608, Phoenix Contact QUINT4-PS/1AC/12DC/15 Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 12V dc dc Output, 15A, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

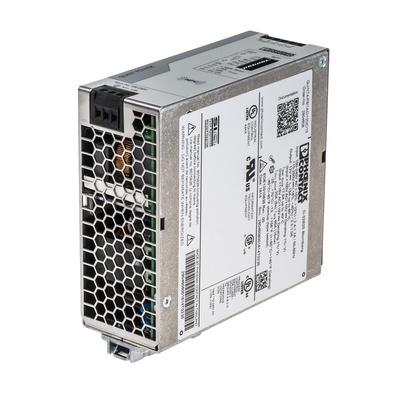

Phoenix Contact Switch Mode Power Supply, 15A, 12 to 15V DC - QUINT4-PS/1AC/12DC/15 - 2904608

Ensure the supply of power and signals to single-phase industrial machinery and equipment with this switch mode power supply from Phoenix Contact. It reliably starts up even the most demanding of loads, such as those found in machine-building applications, to keep systems operational at all times.

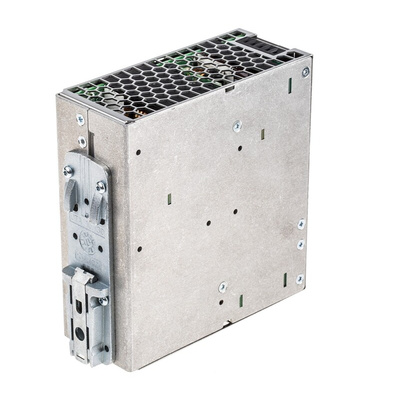

The unit is easy to snap onto a DIN rail for quick, tool-free assembly. It has a robust electrical and mechanical design with a mean time between failures of over 749,000 hours to ensure reliable function throughout its extended lifespan. As the power supply continually monitors your power system, it detects errors before serious failures occur for improved productivity.
This power supply ensures the safe supply of electricity to all connected 24V DC (direct current) loads. Its signalling thresholds and characteristic curves are easily adjusted, so you can configure the device to suit your needs.

• Robust metal housing that's able to withstand operating temperatures ranging from -25°C to +70°C
• Easy system extension, thanks to its power reserve function
• Mains failure bridging time of more than 20 milliseconds for superior immunity to electrical faults
• Meets IEC 60950-1/VDE 0805 (International Electrotechnical Commission) safety standards for mains powered information technology equipment

Datasheet 2904608

Brochure - Power Supply Systems

Line Drawing - 2904608

Installation Sheet - Installation Notes for Electricians
