R171000, Ideal Networks Cable Tester Coaxial, SecuriTest IP

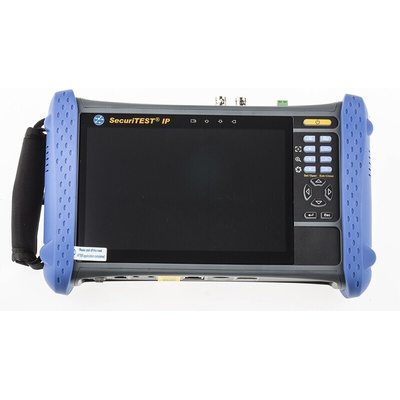

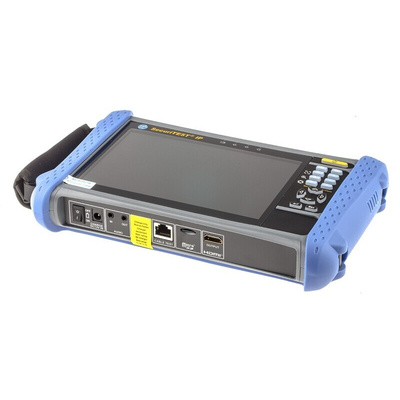

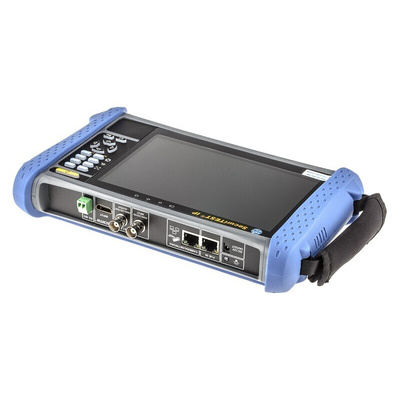

From IDEAL Networks, the SecuriTEST IP is an all-in-one installation and troubleshooting tester, supporting all digital/IP, HD coax and analogue CCTV camera systems. The SecuriTEST network tester allows you to power and configure your camera systems, all from one portable unit. The SecuriTEST also provides a convenient method for creating professional test reports when a job has been completed successfully, reducing costly call-backs.

Simple and easy to use, the SecuriTEST IP tester has an additional feature, the QuickIP™ function. This unique feature allows novice installers who are new to IP camera systems to confidently connect cameras without being network specialists.

Features and Benefits

• High resolution 7” capacitive screen with 1920 x 1200 resolution display
• 4k ready for accurate setup and crystal clear focus of high-resolution cameras
• Handheld, light and easy to use with one hand operation.
• Pan/Tilt /Zoom (PTZ) the camera using the touchscreen or hard keys
• Fast access key – short cut menu quickly launches your most used tools
• Connect to any IP or analogue camera using RJ45, BNC connections or Wi-Fi via a network
• Easily transfer test reports using the built-in Wi-Fi and web browser
• Long battery life, up to 10 hours continuous usage with a lithium –Ion battery

Applications

The SecuriTEST IP CCTV multi-function test kit is an essential piece of test equipment for installation and security engineers. Ensuring your premises surveillance systems are maintained and are in full working order is vital. Some of the most common applications are

• CCTV Installations
• Security Engineers
• Troubleshooting and Testing
• Camera set up and verification

What's supplied in the kit?

The IDEAL Networks R171000 kit is supplied in a high-quality carry case with strap. The test kit includes

• SecuriTEST IP multi-function tester
• Neck straps
• Power supply with EU/UK/US/AU adapters

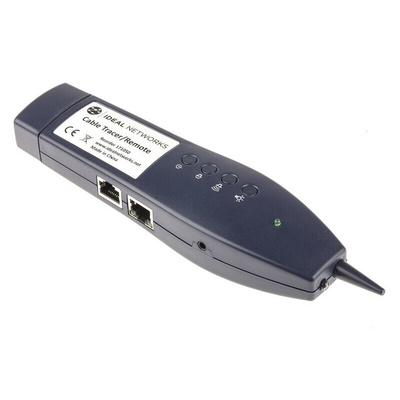

• Cable tracer / remote
• Cat5e UTP Ethernet patch cable (3m)
• Coax cable with two BNC male connectors (3m)
• 12 volt DC power cable (3m)
• RS485 female green plugs
• RS485 cable with female green plug and clips (0.5m)
• Audio male jack with end clips (0.5m)
• 8GB microSD card and reader with USB adapter
• Quick reference guide

Datasheet

Technical Ref
