ENCL20-8MM-SS, Ruland Shaft Collar One Piece Clamp Screw, Bore 8mm, OD 20mm, W 5.5mm, Stainless Steel

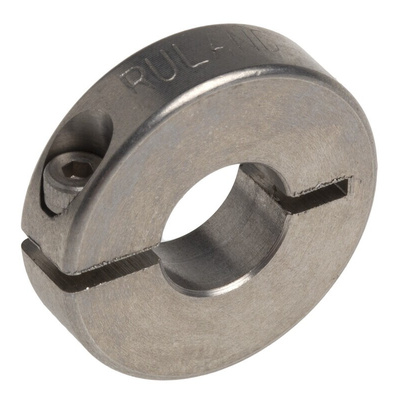

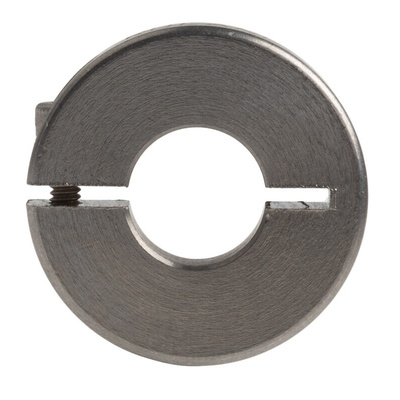

Ruland Shaft Collar One-piece Clamp Screw

The Ruland two-piece shaft collar has an innovative thin line design that enables it to be used in confined spaces. The dimensions of the shaft collar are 8mm bore, 20mm OD and 5.5mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.002in) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M2x6 dimension.

Features and Benefits

• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C

Applications

• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop

Certifications

• REACH certification
• ISO13050
• DIN 7721
• IP27 RMA-MPTA rated
