MCL-16-SS, Ruland Shaft Collar One Piece Clamp Screw, Bore 16mm, OD 34mm, W 13mm, Stainless Steel, Зажимное кольцо

1746751
Номер производителя: MCL-16-SSПроизводитель: Ruland
Цена за шт.
6099.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

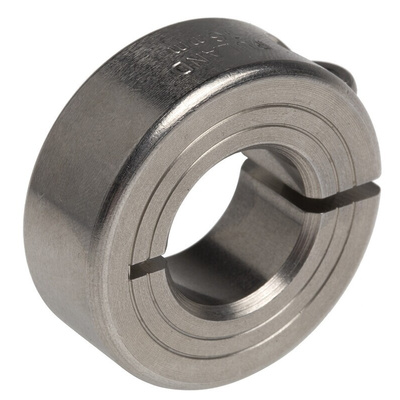

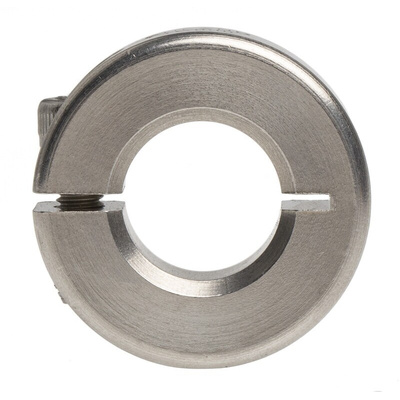

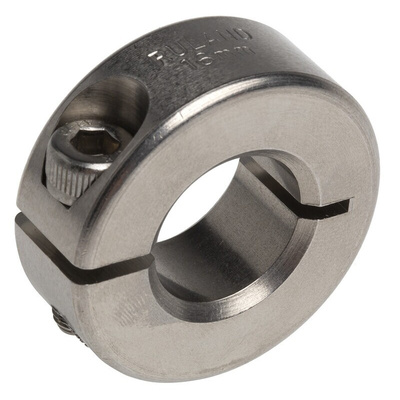

Ruland Shaft Collar One-piece Clamp Screw

The Ruland one-piece shaft collar has dimensions of 16mm bore, 34mm OD and 13mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M5x16 dimension.

Features and Benefits

• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C

Applications

• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop

Certifications

• DIN 912 12.9
• REACH certification

Техническая спецификация
pdfDatasheet
