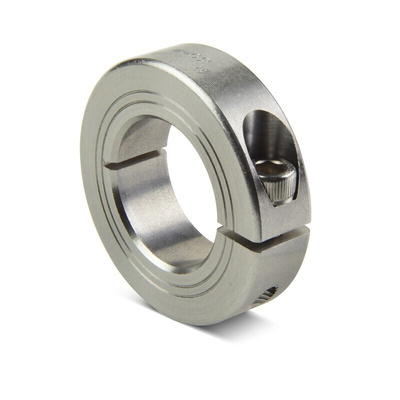

MCL-30-SS, Ruland Shaft Collar One Piece Clamp Screw, Bore 30mm, OD 54mm, W 15mm, Stainless Steel

Ruland MCL-30-SS is a one-piece shaft collar with a 30mm bore, 54mm OD, and 15mm width. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. MCL-30-SS is stamped with the Ruland name and bore size for ease of identification.

Datasheet
