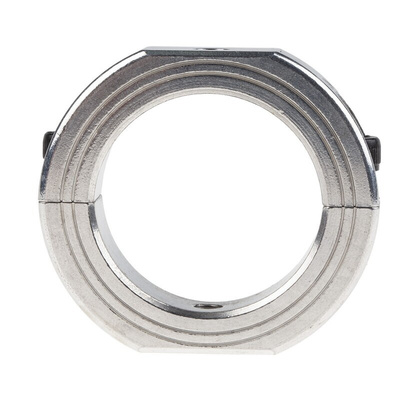

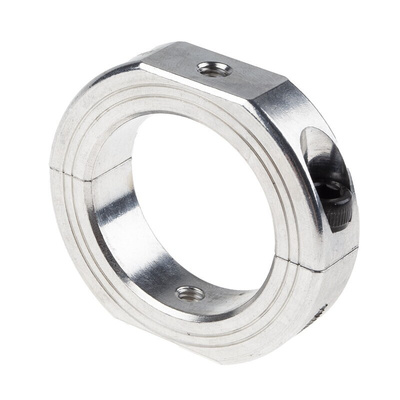

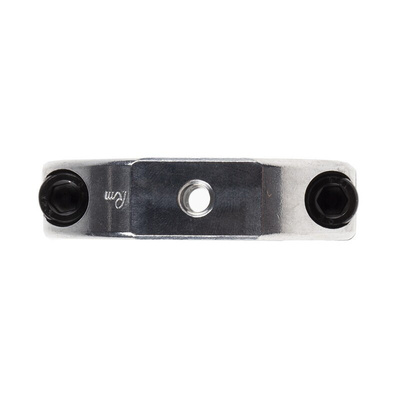

OF-MSP-40-A, Ruland Shaft Collar Two Piece Clamp Screw, Bore 40mm, OD 60mm, W 15mm, Aluminium

Ruland Shaft Collar Two-piece Clamp Screw

The Ruland one-piece shaft collar has dimensions of 40mm bore, 60mm OD and 15mm width. It is made from 2024-T351 aluminium bar with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. The thin line design enables the use in confined spaces. Collar has a clamp screw of M6x18 dimension.

Features and Benefits

• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 107°C

Applications

• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop

Certifications

• DIN 912 12.9
• REACH certification
