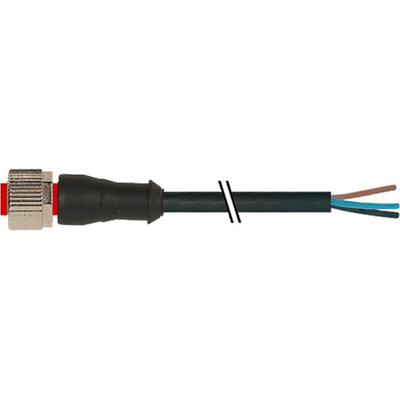

RS PRO Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Straight M12 to Unterminated Industrial Automation Cable Assembly, 4 Cores, 5 m

This RS PRO cable assembly allows for a bespoke connection to your electrical appliances. One end is unterminated and partially stripped, enabling you to customise the link to fit the specific outlet you're using.
The sturdy polyurethane (PUR) sheath protects the cable from grease and oil build-up and mechanical wear for a long product life. The copper conductors offer strong heat resistance, increasing safety.
This cable features a knurled and hexagonal combination nut and an integrated, corrugated conduit locking system, ensuring a secure connection. This makes the product suitable for heavy-duty use in harsh working environments.

Features and Benefits

• American Wire Gauge size of 22 AWG
• Round cable shape
• Copper conductor material
• Connector A is an M12 straight female socket
• Four contacts
• Connector B is unterminated
• Cross-sectional area of 0.34 mm²
• Current rating of 4 A
• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against water jets)
• Length of 5 m
• Minimum bend radius of 10 x 15 mm
• Four cores
• Oil-resistant
• Maximum operating temperature range of -25°C to +85°C
• Outer diameter of 15 mm
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Unshielded
• cLus certified
• Meets Canadian Standards Association (CSA), DIN VDE 0298-4, EN 60529, IEC 60664-1, Underwriter Laboratories (UL) safety standards for low-voltage insulated cables
• Voltage rating of 250 V AC/DC
