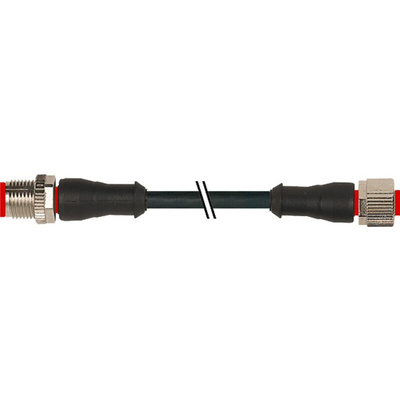

RS PRO Straight Male 4 way M12 to Straight Female 4 way M12 Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO M12 Straight to Straight Industrial Automation Cable Assembly, 4 Cores, 5 m

This RS PRO straight M12 cable assembly connects your electrical components. It's commonly used in industrial automation applications such as packaging, food processing and web servers.
The sheath is made from polyurethane (PUR) to protect the cable from the oil and grease that can appear on assembly lines. Its Ingress Protection (IP) rating of IP67 means it's sealed against water jets and highly resistant to moisture.
The cable meets numerous safety standards, including UL (Underwriter Laboratories), CSA (Canadian Standards Association) and DIN (German Institute of Standardisation), so you can be sure it's safe to use. It's unshielded with a basic foil covering for easier installation in compact working areas.

Features and Benefits

• American Wire Gauge size of 22 AWG
• Round cable shape
• Copper conductor material
• Connector A is a straight male M12 plug connector type
• Connector B is a straight male M12 plug connector type
• Four contacts
• Cross-sectional area of 0.34 mm²
• Current rating of 4 A
• IP67 rating (dust-tight and sealed against water jets)
• Length of 5 m
• Minimum bend radius of 10 x 15 mm
• Four cores
• Oil-resistant
• Operating temperature range of -25°C to +85°C
• Outer diameter of 15 mm
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Unshielded
• cLus certified
• Meets CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL safety standards
• Voltage rating of 250 V AC/DC
