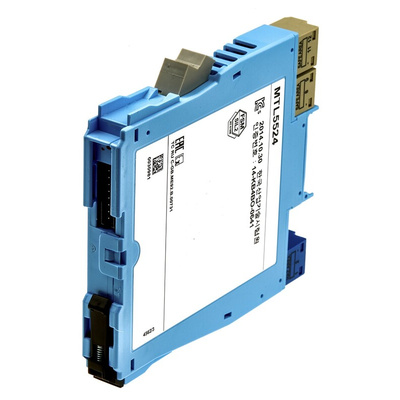

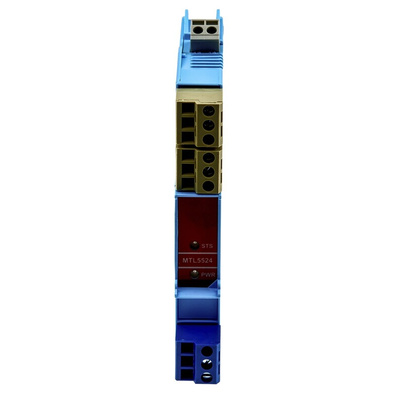

MTL5524, Eaton MTL Series Signal Conditioner, Voltage Input, Voltage Output

Eaton MTL Isolation signal conditioner

The MTL MTL5000 series signal conditioner, Solenoid/Alarm Driver, isolated voltage output. This enables an on/off device in a hazardous area to be controlled by a volt-free contact or logic signal in the safe area. It can drive loads such as solenoids, alarms, LEDs and other low power devices that are certified as intrinsically safe or are classified as non-energy storing simple apparatus. The MTL4524 allows a second safe-area switch or logic signal to be connected enabling the output to be disabled to permit, for example, a safety system to override a control signal.

Features and Benefits

• 3-port isolation
• Compact modular design with DIN rail mounting
• Compatible with MTL5000
• High packing density
• Input Voltage Range is 1.4 to 4.5Vdc
• Low power dissipation
• Operating temperature ranges between -20°C and 60°C
• Output Voltage Range is 13.6 to 24Vdc
• Single and multi-channel I/O modules

Applications

• Chemical and Petrochemical industries
• Food and beverages industry
• Metal processing
• Mining
• Oil and gas industry
• Recycling plants

Certifications

• SIL2
• SIL3

Note

Eaton formerly known as MTL
